In the competitive world of manufacturing, staying ahead requires precision, speed, and adaptability. For businesses that create complex parts or work with a wide range of materials, traditional 3-axis systems often fall short. That’s where a 5 axis CNC machine steps in—offering advanced capabilities that are transforming how industries approach modern machining.
This article explores why the 5 axis CNC machine has become essential in today’s industrial landscape. From its versatile design to the benefits it brings across sectors, we’ll guide you through everything you need to know before adding one to your workshop or factory.
What is a 5 axis CNC machine?

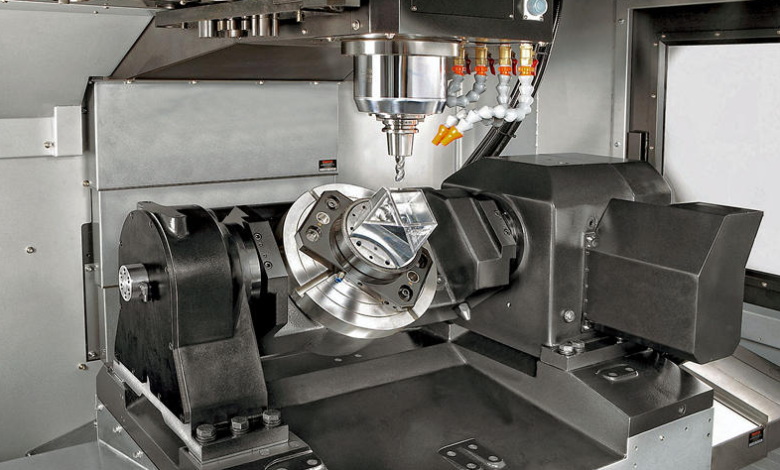

A 5 axis CNC machine is an advanced milling machine that can move a tool or part along five different axes simultaneously. The three linear axes (X, Y, and Z) are combined with two rotary axes (typically labeled A and B). This multi-directional movement allows the cutting tool to reach all sides of a part in a single setup—something a standard 3-axis machine cannot do.
The ability to machine at multiple angles without re-clamping reduces time, enhances accuracy, and allows for the creation of parts with intricate contours, undercuts, or complex shapes.
How It Differs from Traditional CNC Machines
While both 3-axis and 5-axis machines use computer numerical control, the 5 axis CNC machine provides greater freedom of motion. With 3-axis models, machinists often need to reposition the workpiece manually to access different faces. This not only takes time but introduces potential errors due to misalignment.
With five axes at play, the machine automatically orients the part or tool, completing operations faster and with higher precision. This is especially important for parts with curved surfaces, deep cavities, or tight tolerances.
Core Benefits of a 5 axis CNC machine
1. Single Setup Operation
The most significant advantage of a 5 axis CNC machine is its ability to complete complex machining in one setup. This minimizes downtime and operator intervention while increasing productivity.
2. Increased Precision
Fewer setups mean less risk of part shifting or misalignment. The consistent positioning ensures tighter tolerances and repeatable results.
3. Faster Production Cycles
Eliminating the need to reposition the part manually speeds up the entire machining process. This is crucial for high-volume production runs.
4. Improved Surface Finish
By continuously adjusting the tool angle, the machine can maintain a better cutting position, leading to smoother finishes and reduced post-processing.
5. Expanded Design Possibilities
Designers have more freedom to innovate when they know their ideas can be accurately manufactured using 5-axis technology. Complex parts like aerospace impellers or custom medical implants become easier to produce.
See also: A Complete Guide to the icp aes instrument: Technology, Applications, and Benefits
Industries That Rely on 5 axis CNC Machines
Due to their flexibility and accuracy, 5-axis machines are widely used across various industries:
- Aerospace: Ideal for manufacturing components like turbine blades, brackets, and housings.
- Medical: Enables production of complex implants, surgical instruments, and dental devices.
- Automotive: Used for creating transmission parts, prototypes, and performance engine components.
- Marine: Useful for machining propellers and hull components.
- Mold Making: Creates detailed molds with fewer machining steps.
No matter the industry, a 5 axis CNC machine can significantly improve production quality and lead times.
Key Features to Consider
Before purchasing a 5 axis CNC machine, it’s important to evaluate the following features to ensure the best return on investment:
• Machine Configuration
There are different 5-axis designs: table-table, head-head, and table-head configurations. Your choice depends on the size and complexity of the parts you intend to produce.
• Spindle Speed and Torque
Select a machine with spindle specs that match your primary materials. High-speed spindles are great for aluminum and plastics, while high-torque options are better for harder metals like steel and titanium.
• Axis Travel
Ensure the machine offers sufficient travel on all axes to handle the size of your largest parts comfortably.
• Control Interface
Look for CNC control systems like FANUC, Siemens, or Heidenhain. These are reliable, user-friendly, and capable of running complex 5-axis programs efficiently.
• CAM Software Compatibility
Advanced CAM software such as Fusion 360, HyperMill, or Mastercam is essential for generating 5-axis toolpaths and simulating machining operations.
New vs. Used: What to Choose?
You’ll find both new and used options when searching for a 5 axis CNC machine. Here’s a breakdown of what to consider:
✅ New Machines
- Equipped with the latest technology
- Warrantied and supported by the manufacturer
- Ideal for critical applications and round-the-clock production
✅ Used Machines
- Lower upfront cost
- Useful for shops entering 5-axis machining or on a tight budget
- May include tools and accessories
Tips for buying used: Inspect the spindle and rotary axes, ask for service records, and test the machine under real conditions. Always buy from reputable dealers.
Where to Find a 5 axis CNC machine for Sale
Here are some common sources:
- Manufacturer Direct: Trusted names like Haas, Mazak, and DMG Mori offer reliable new machines.
- Online Marketplaces: Sites like MachineTools.com, Alibaba, and CNCTrader have extensive listings.
- Local Distributors: These often offer pre-sale support, training, and installation.
- Industry Auctions: Great for finding used machines at lower prices—but inspect thoroughly.
Maintenance and Training
Operating a 5 axis CNC machine requires specialized knowledge. You’ll need proper training for your operators and a maintenance plan to keep the machine running optimally. Most manufacturers offer operator training, or you can outsource to third-party training providers.
Routine maintenance should include:
- Cleaning of guideways and tool holders
- Lubrication checks
- Calibration of rotary axes
- Regular software updates and backups
Final Thoughts
The 5 axis CNC machine isn’t just an upgrade—it’s a gateway to faster innovation, higher productivity, and improved product quality. Its ability to streamline processes, reduce error, and handle complex designs makes it a crucial tool in any advanced machining environment.
Whether you’re scaling up an existing operation or exploring high-precision work for the first time, this machine opens the door to endless possibilities. Just be sure to invest time in planning, training, and maintenance to get the most out of this powerful piece of equipment.
The manufacturing future is multi-axis—and the 5 axis CNC machine is leading the way.
